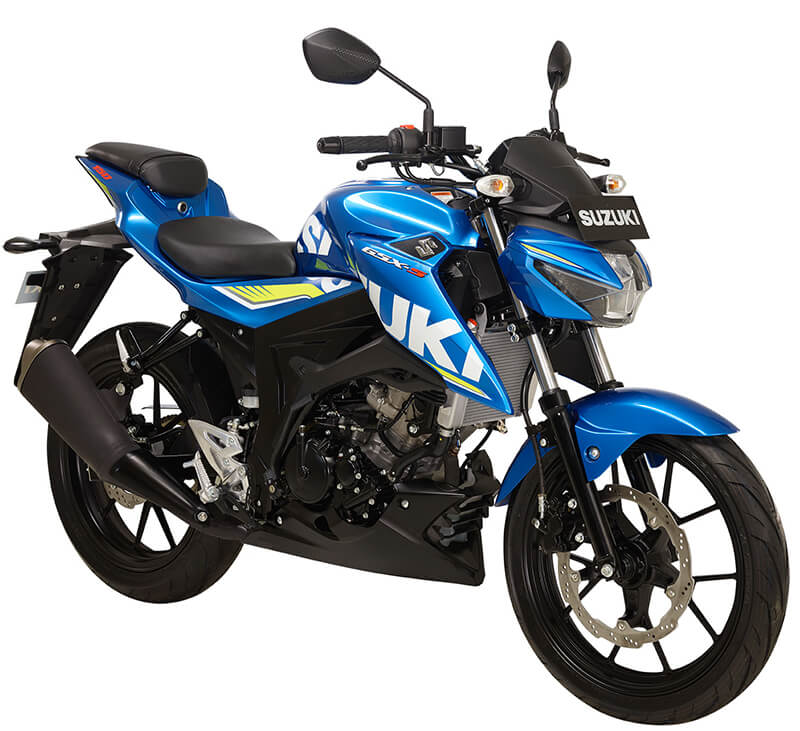

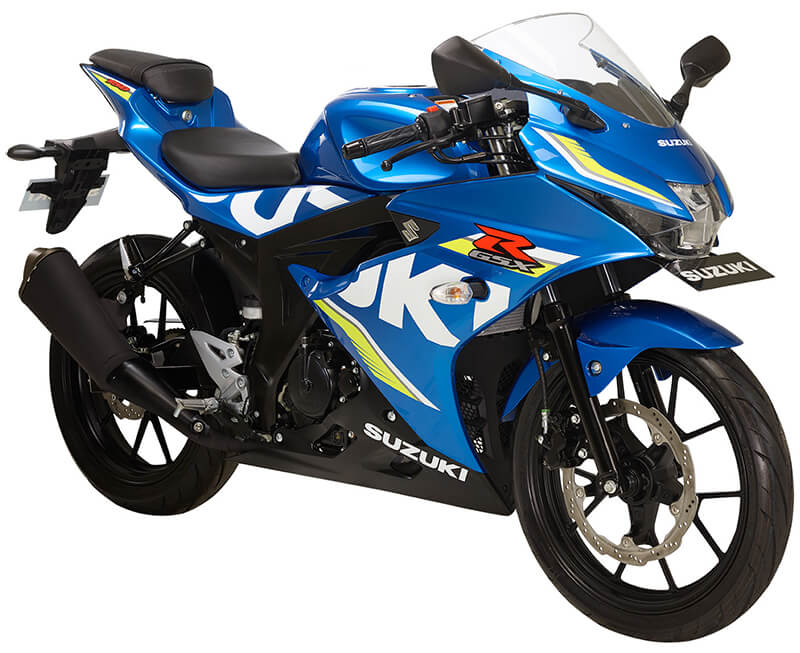

Metallic Triton Blue

Titan Black

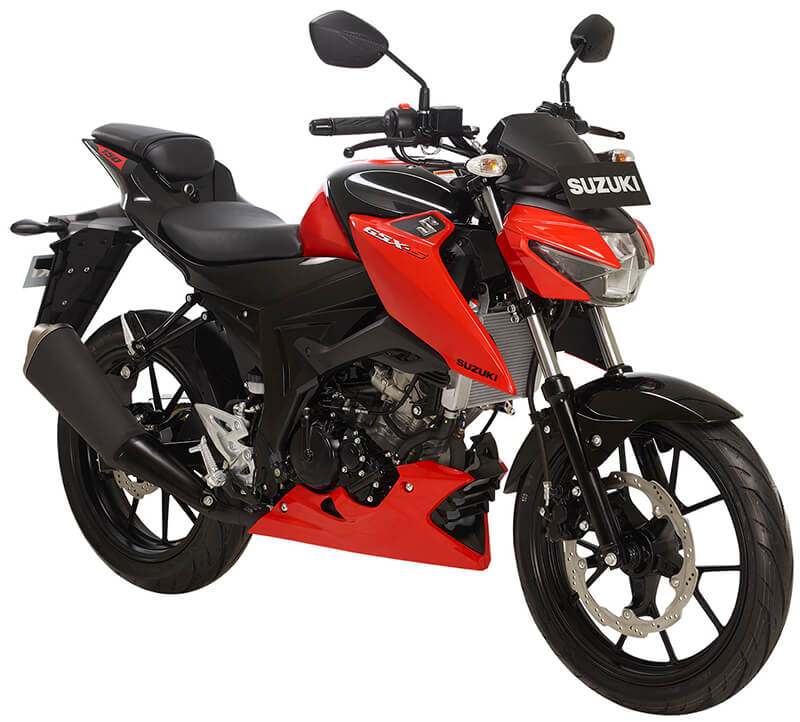

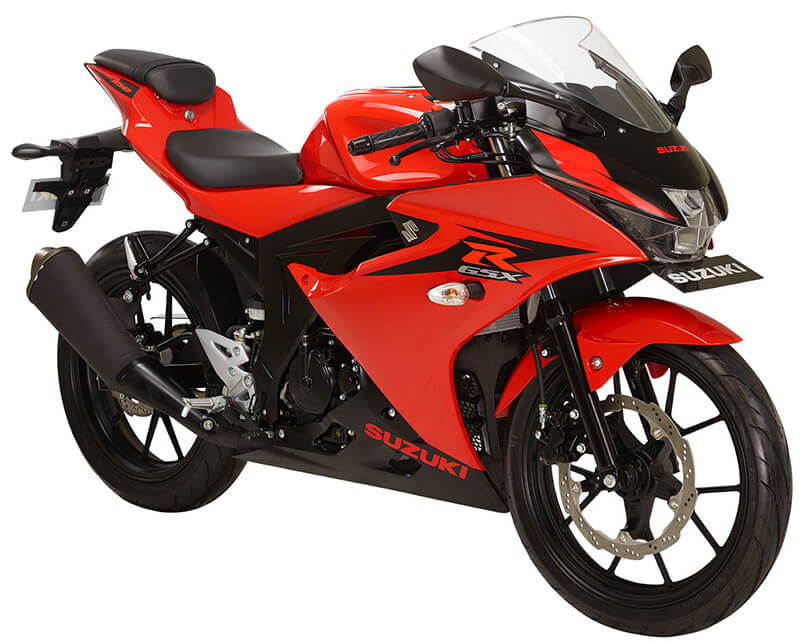

Stronger Red - Titan Black

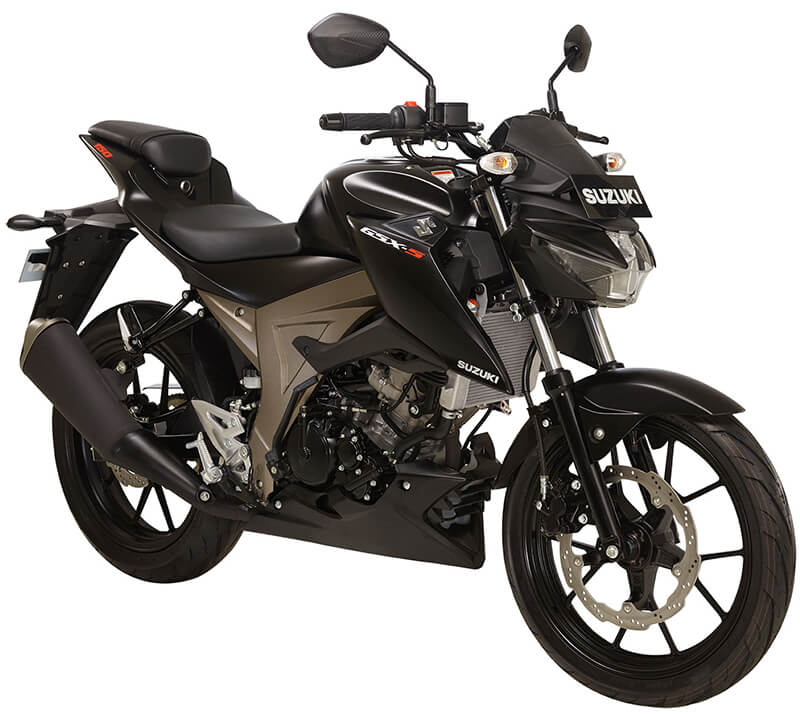

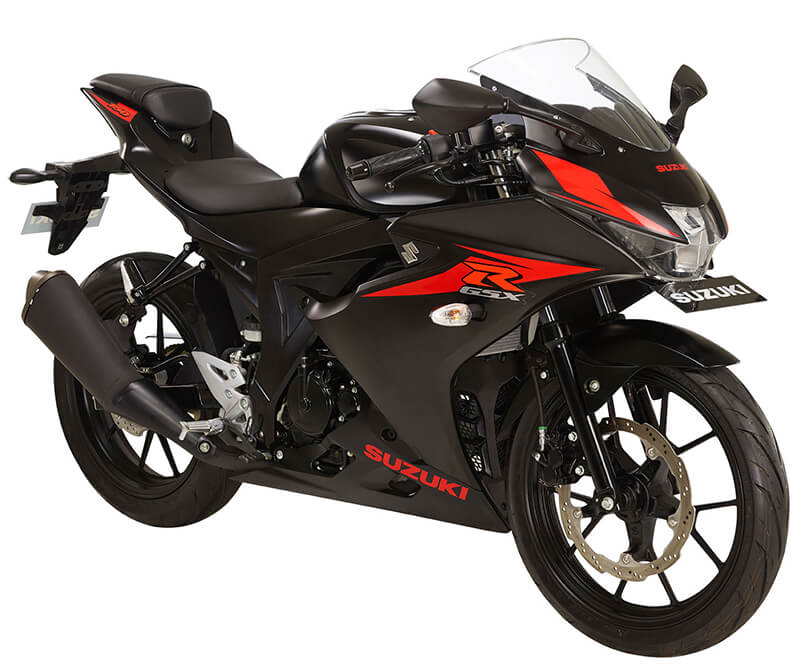

Matt Black

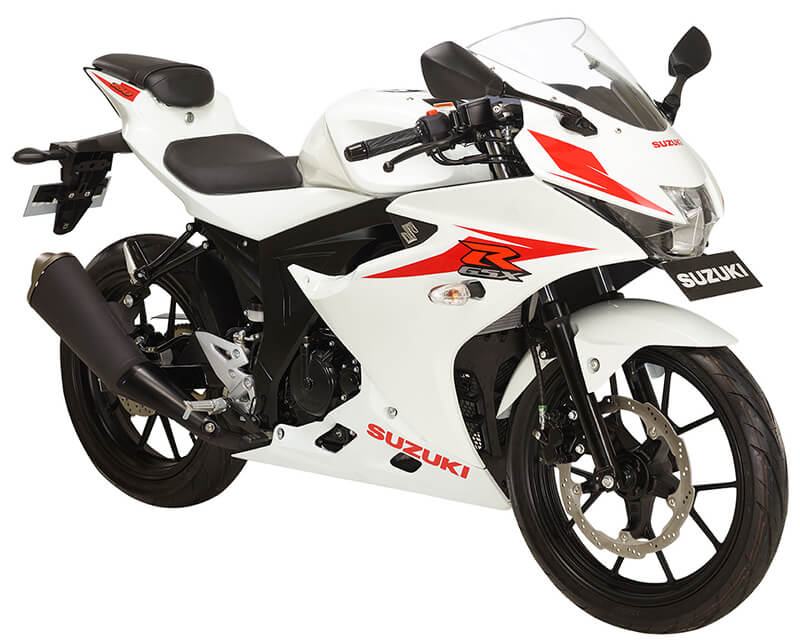

Brilliant White

Metallic Triton Blue

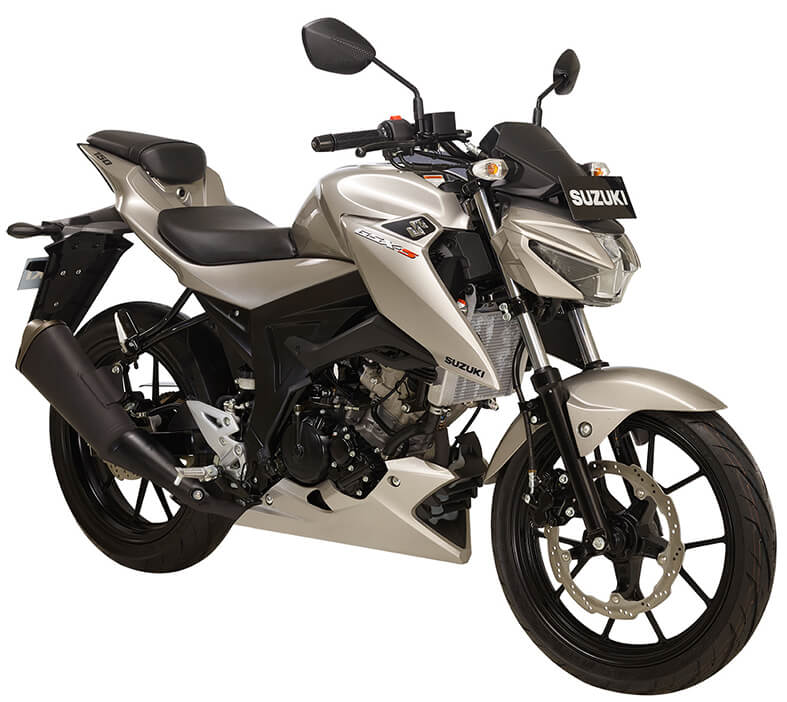

Ice Silver

Stronger Red – Titan Black

Matt Black

Features

Specification

Dimension, Weight
Over all length (mm) 2,020 2,020
Over all width (mm) 700 745
Over all height (mm) 1,075 1,040
Wheelbase (mm) 1,300 1,300
Seat height (mm) 785 785
Ground clearance (mm) 160 155
Riding capacity (people) 2 2
Curb mass (kg) 131 130
Engine
Engine type Water-cooled, 4-stroke Water-cooled, 4-stroke
Valve system DOHC 4-valve DOHC 4-valve
Number of cylinder 1-cylinder 1-cylinder
Engine displacement (cm3) 147.3 147.3
Bore x stroke (mm) 62.0×48.8 62.0×48.8
Maximum output (kw / rpm) 14.1/10,500 14.1/10,500
Maximum torque (Nm / rpm) 14.0/9,000 14.0/9,000
Fuel system FI FI
Transmission 6-speed, return 6-speed, return
Starter system Electric Electric
Chasis
Frame type Diamond Diamond
Brakes (Front) Disc (Petal) Disc (Petal)
Brakes (Rear) Disc (Petal) Disc (Petal)
Suspension (Front) Telescopic Telescopic
Suspension (Rear) Swingarm Swingarm
Wheels Cast Cast
Tires (Front) 90/80-17(TL) 90/80-17(TL)
Tires (Rear) 130/70-17 (TL) 130/70-17 (TL)
Electrical
Headlight LED LED
Taillight Bulb Bulb
Battery type MF MF
Electronic instrument cluster Full digital Full digital
Tachometer Yes Yes
Fuel Consumption
Fuel tank capacity (ℓ) 11 11
Calculated driving range (km) N/A N/A
Emissions standards Euro3 Euro3
Fuel consumption (km/ℓ) N/A N/A
Equipment
Key-less Ignition system Yes N/A

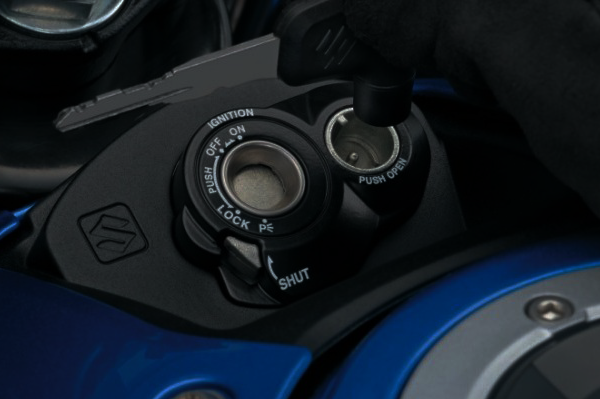

Shutter-Key lock system N/A Yes

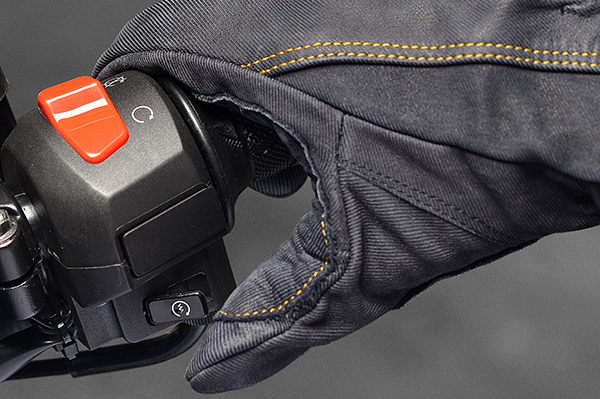

Suzuki easy start system Yes Yes
